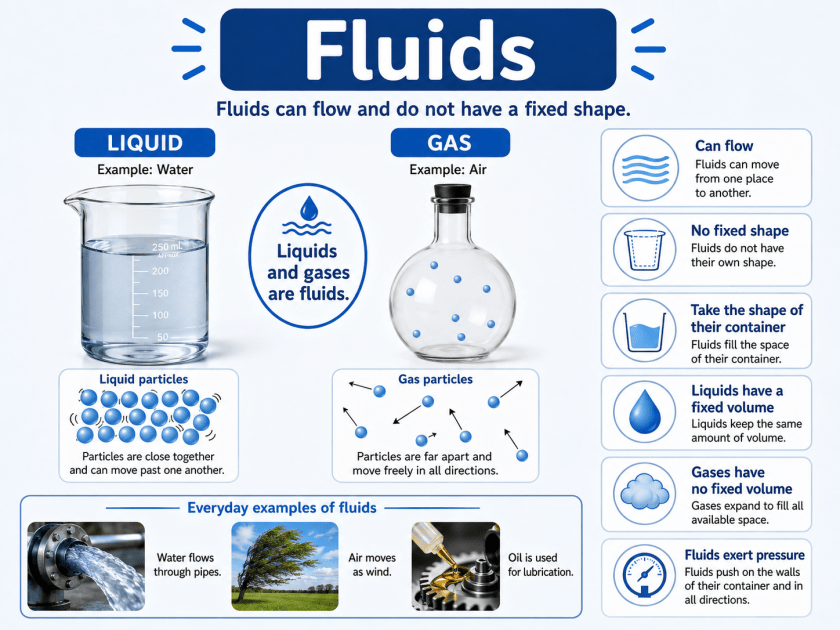

What are Fluids?
A fluid is a substance that can flow and change its shape when a force is applied.
Liquids and gases are both fluids because their particles can move past one another. Unlike solids, fluids do not have a fixed shape. They take the shape of their container.
Liquids have a fixed volume, while gases expand to fill the entire space available to them.
Particle Arrangement in Fluids
The particles in fluids are not held in fixed positions.
- In liquids, the particles are close together but can move and slide past one another.
- In gases, the particles are much farther apart and move freely in all directions.
This movement of particles allows fluids to flow.
Properties of Fluids
Fluids generally have the following properties:
- they can flow
- they do not have a fixed shape
- they take the shape of their container
- their particles can move past one another
- they exert pressure
- they can be transferred through pipes and tubes
The behaviour of a fluid depends on whether it is a liquid or a gas and on properties such as density and viscosity.
Liquids and Gases as Fluids
Both liquids and gases are classified as fluids because they can flow.
- A liquid has a fixed volume but no fixed shape. It takes the shape of the part of the container it occupies.
- A gas has neither a fixed shape nor a fixed volume. It spreads out and fills the entire container.
Ability to Flow
Fluids flow because their particles are free to move relative to one another.
When a force is applied, the particles change position, causing the fluid to move.
Examples of Fluid Flow:
- Water flowing through a pipe
- Air moving as wind
- Oil being poured from a bottle
Shape of Fluids
A fluid does not keep its own shape.
A liquid takes the shape of the container up to its surface.
- Water poured into a glass takes the shape of the glass.
- Water placed in a bowl takes the shape of the bowl.
A gas spreads throughout the whole container and takes both its shape and volume.
Pressure in Fluids
Fluids exert pressure on the surfaces with which they are in contact.
The particles of a fluid are constantly moving and colliding with the walls of the container. These collisions produce pressure.
Fluid pressure acts in all directions.
In liquids, pressure generally increases with depth because the lower layers support the weight of the liquid above them.
Fluids in Everyday Life
Fluids are essential in everyday life.
Examples:
- water flowing through pipes
- blood circulating through the body
- air moving in and out of the lungs
- fuel flowing through engines
- oil used for lubrication
- air moving around vehicles and aircraft
- liquids being transported through pumps and pipelines
Density of Fluids
Density describes how much mass is contained in a given volume.
Different fluids have different densities. For example, oil is less dense than water, so it floats on the surface of water.
The density of a fluid can affect whether an object floats or sinks and how easily the fluid moves.
Viscosity
Viscosity is a measure of a fluid’s resistance to flow.
A fluid with high viscosity flows slowly, while a fluid with low viscosity flows more easily.
- Honey and glycerine have high viscosity.
- Water and air have lower viscosity.
Temperature can affect viscosity. Many liquids become less viscous and flow more easily when heated.
Fluid Pressure and Depth
In a liquid, pressure increases with depth.
This happens because the lower layers of liquid support the weight of the liquid above them.
For this reason:
- water pressure is greater at the bottom of a tank
- dams are made thicker near the base
- divers experience greater pressure as they go deeper underwater
The pressure at a particular depth also depends on the density of the liquid.
Transmission of Pressure in Fluids
When pressure is applied to a confined fluid, it is transmitted through the fluid.
This principle is used in hydraulic machines.
Examples include:
- hydraulic brakes
- hydraulic lifts
- hydraulic jacks
- heavy construction machinery
A force applied at one part of the system can produce a useful force at another part.
Buoyancy
A fluid exerts an upward force on an object placed in it.
This upward force is called buoyant force or upthrust.
An object floats when the buoyant force is sufficient to support its weight. It sinks when its weight is greater than the buoyant force.
Ships float, balloons rise, and swimmers feel lighter in water because of buoyancy.
Floating and Sinking
Whether an object floats or sinks depends mainly on its average density compared with the density of the fluid.
- An object that is less dense than the fluid tends to float.
- An object that is more dense than the fluid tends to sink.
A steel ship can float because its hollow shape gives it a lower average density than the water it displaces.
Streamlined Shapes
A fluid resists the motion of an object moving through it. This resistance is called drag.
Streamlined shapes allow fluids to move smoothly around an object and reduce drag.
For example, cars, aircraft, boats, fish, and birds often have streamlined shapes that help them move more efficiently through air or water.
Flow of Fluids
Fluid flow may be smooth or irregular.
- In smooth flow, neighbouring layers of fluid move in an orderly manner.
- In irregular flow, the fluid moves in changing directions and may form swirls or eddies.
The type of flow depends on factors such as:
- the speed of the fluid
- its viscosity
- the shape of the path
- obstacles in its way
Importance of Fluids
Fluids are essential to natural processes, living organisms, and technology.
Water carries nutrients through plants and animals. Blood transports oxygen and other substances through the body. Air makes breathing and weather possible.
Fluids are also used in heating, cooling, lubrication, transportation, power generation, and industrial systems.
Understanding fluid behaviour is important in engineering, medicine, environmental science, and everyday life.
Key Points
- Liquids and gases are fluids because they can flow.
- Fluids do not have a fixed shape.
- Liquids have a fixed volume, while gases fill the available space.
- Fluid particles can move past one another.
- Fluids exert pressure in all directions.
- Liquid pressure increases with depth.
- Density affects floating and sinking.
- Viscosity describes resistance to flow.
- Fluids exert an upward buoyant force on objects.
- Streamlined shapes reduce resistance to motion through fluids.
Glossary of Key Terms
Recap of the Key Terms in Fluids
- Buoyancy: The upward force exerted by a fluid on an object placed in it.
- Buoyant Force: The upward force that helps support an object in a fluid.
- Compressibility: The ability of a fluid to decrease in volume when pressure is applied.
- Density: The amount of mass contained in a given volume of a substance.
- Drag: The force that resists the motion of an object through a fluid.
- Fluid: A substance that can flow and change shape when a force is applied.
- Fluid Flow: The movement of a liquid or gas from one place to another.
- Fluid Pressure: The force exerted by a fluid on a surface per unit area.
- Gas: A state of matter with no fixed shape or fixed volume.
- Hydraulic Machine: A machine that uses pressure transmitted through a confined fluid to produce force.
- Liquid: A state of matter with a fixed volume but no fixed shape.
- Pressure: The force acting on a surface per unit area.
- Streamlined Shape: A shape designed to reduce resistance as an object moves through a fluid.
- Upthrust: Another term for buoyant force.
- Viscosity: A measure of a fluid’s resistance to flow.
Questions and Answers
Recap the concepts you have learnt. Try to answer the questions. You can find the answer to any question by clicking on the icon.
What is a fluid?
A fluid is a substance that can flow and change its shape when a force is applied.
Which states of matter are classified as fluids?
Liquids and gases are classified as fluids.
Why are liquids and gases called fluids?
They are called fluids because their particles can move past one another, allowing them to flow.
Do fluids have a fixed shape?
No. Fluids take the shape of their container.
Do liquids have a fixed volume?
Yes. Liquids have a fixed volume but no fixed shape.
Do gases have a fixed volume?
No. Gases expand to fill all the available space in their container.
How are particles arranged in a liquid?
Liquid particles are close together but can move and slide past one another.
How are particles arranged in a gas?
Gas particles are far apart and move freely in all directions.
Why can fluids flow?
Fluids can flow because their particles are not held in fixed positions.
Give three examples of fluid flow.
Water moving through a pipe, air moving as wind, and oil being poured from a bottle are examples of fluid flow.
What shape does a liquid take?
A liquid takes the shape of the part of the container it occupies.
What shape does a gas take?
A gas takes the shape of the entire container.
What is fluid pressure?
Fluid pressure is the force exerted by a fluid on a surface per unit area.
In which directions does fluid pressure act?
Fluid pressure acts in all directions.
Why do fluids exert pressure?
Fluids exert pressure because their moving particles collide with surfaces.
How does liquid pressure change with depth?
Liquid pressure increases as depth increases.
Why is water pressure greater at the bottom of a tank?
The lower layers of water support the weight of all the water above them.
Why are dams made thicker near the bottom?
Dams are thicker near the bottom because water pressure is greater at greater depths.
What is density?
Density is the amount of mass contained in a given volume.
Why does oil float on water?
Oil floats because it is less dense than water.
What is viscosity?
Viscosity is a measure of a fluid’s resistance to flow.
What is a highly viscous fluid?
A highly viscous fluid resists flow and moves slowly.
Give two examples of fluids with high viscosity.
Honey and glycerine have high viscosity.
Give two examples of fluids with low viscosity.
Water and air have relatively low viscosity.
How does heating usually affect the viscosity of a liquid?
Heating usually reduces viscosity, causing the liquid to flow more easily.
What happens when pressure is applied to a confined fluid?
The pressure is transmitted through the fluid.
Give two examples of hydraulic machines.
Hydraulic brakes and hydraulic lifts are examples of hydraulic machines.
What is buoyancy?
Buoyancy is the upward force exerted by a fluid on an object placed in it.
What is another name for buoyant force?
Buoyant force is also called upthrust.
When does an object float in a fluid?
An object floats when the buoyant force is sufficient to support its weight.
When does an object sink in a fluid?
An object sinks when its weight is greater than the buoyant force acting on it.
How does density affect floating and sinking?
An object less dense than the fluid tends to float, while an object more dense than the fluid tends to sink.
Why can a steel ship float on water?
Its hollow shape lowers its average density so that it is less than the density of water.
What is drag?
Drag is the force that resists the motion of an object through a fluid.
What is a streamlined shape?
A streamlined shape allows a fluid to move smoothly around an object and reduces drag.
Why are cars and aircraft given streamlined shapes?
Streamlined shapes reduce air resistance and help them move more efficiently.
What is smooth fluid flow?
Smooth fluid flow occurs when neighbouring layers of fluid move in an orderly manner.
What is irregular fluid flow?
Irregular fluid flow occurs when the fluid moves in changing directions and forms swirls or eddies.
What factors affect the way a fluid flows?
The speed, viscosity, shape of the path, and obstacles in the fluid’s way can affect its flow.
Why are fluids important in everyday life?
Fluids are essential for breathing, circulation, transportation, heating, cooling, lubrication, and many natural and technological processes.
